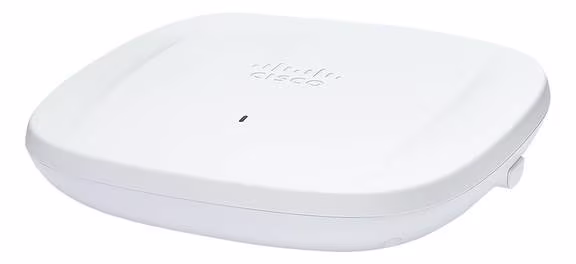

Catalyst 9136I access point

Mã sản phẩm: Catalyst 9136I access point
Tình trạng: Còn
Giá: Liên hệ
Lượt xem: 272
Liên hệ tư vấn 0888.222.070


The Wi-Fi 6E-compliant Catalyst 9136 Series takes advantage of the 6-GHz band expansion to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. The access points come with two 4x4 radios and one 8x8 radio and provide a host of features.

Wi-Fi 6E technology extends Wi-Fi 6 into the 6-GHz spectrum, bringing faster speeds and lower latency while also providing more security to the network. As apps become increasingly vital for getting work done, clients need unencumbered access to them. Wi-Fi 6E provides that direct access.

Thông số kỹ thuật

Software

Catalyst 9136I

  Cisco IOS XE Software Release 17.7.1 or later

Supported wireless LAN controllers

  Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual)
  Cisco Catalyst 9k switches with Embedded Wireless Controller in SDA mode

802.11n version 2.0 (and related) capabilities

  4x4 MIMO with four spatial streams
  Maximal Ratio Combining (MRC)
  802.11n and 802.11a/g beamforming
  20- and 40-MHz channels
  PHY data rates up to 1.5 Gbps (40 MHz with 5-GHz and 20 MHz with 2.4-GHz)
  Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
  802.11 Dynamic Frequency Selection (DFS)
  Cyclic Shift Diversity (CSD) support

802.11ac

  8x8 downlink MU-MIMO with eight spatial streams
  MRC
  802.11ac beamforming
  20-, 40-, 80-, and 160-MHz channels
  PHY data rates up to 3.4 Gbps (8x8 80 MHz or dual 4x4 80+80 MHz on 5-GHz)
  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  802.11 DFS
  Cyclic Shift Diversity (CSD) support
  Wi-Fi Protected Access (WPA) 3 support

802.11ax

  8x8 uplink/downlink MU-MIMO with eight spatial streams (5-GHz)
  4x4 uplink/downlink MU-MIMO with four spatial streams (2.4 and 6-GHz)
  Uplink/downlink OFDMA
  TWT
  BSS coloring
  MRC
  802.11ax beamforming
  20-, 40-, 80-, and 160-MHz channels (6-GHz)
  20-, 40-, 80-, 80+80-MHz (5-GHz)
  20-MHz channels (2.4-GHz)
  PHY data rates up to 10.2 Gbps (4x4 160 MHz on 6 GHz, 8x8 80 MHz on 5-GHz, and 4x4 20 MHz on 2.4-GHz)
  Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
  802.11 DFS
  CSD support
  WPA3 support

Integrated antenna

  2.4-GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
  5-GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
  6-GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth

Interfaces

  2x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45)
  Management console port (RJ-45)
  USB 2.0 at 9W

Indicators

  Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions
(W x L x H)

  Access point (without mounting brackets):

    9.9 x 9.9 x 2.2 in. (25.1 x 25.1 x 5.6 cm)

Weight

Catalyst 9136I

  3.6 lb. (1.65 kg)

Input power requirements

  802.3bt Cisco Universal PoE (Cisco UPOE), 802.3at Power over Ethernet Plus (PoE+)
  Cisco power injector, AIR-PWRINJ7=
  802.3af PoE (only for configuration staging, all radios off)
