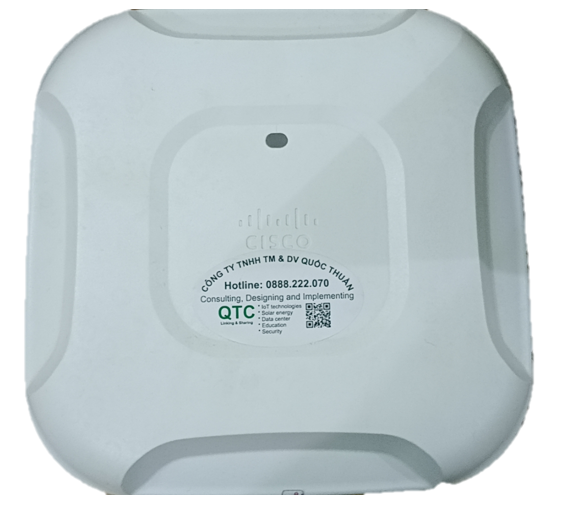

AIR-CAP3702I-A-K9 Cisco Wireless Aironet 3700 Access Point

Interfaces

-  10/100/1000BASE-T autosensing (RJ-45)

-  Management console port (RJ-45)

Indicators

-  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

-  Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)

Weight

-  2.5 lb (1.13 kg)

Environmental

Cisco Aironet 3700i

-  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

-  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

-  Operating temperature: 32° to 104°F (0° to 40°C)

-  Operating humidity: 10% to 90% percent (noncondensing)

-  Operating altitude test: 40˚C, 9843 ft.

Cisco Aironet 3700e/3700p

-  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

-  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

-  Operating temperature: -4° to 122°F (-20° to 50°C)

-  Operating humidity: 10% to 90% (noncondensing)

-  Operating altitude test: 40˚C, 9843 ft.

System memory

-  512 MB DRAM

-  64 MB flash

Input power requirements

-  AP3700: 44 to 57 VDC

-  Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

* This is the power required at the PSE, which is a switch or injector.

Description

AP Functionality

PoE Budget^* (Watts)

802.3af

E-PoE

802.3at PoE+ PWRINJ4

PoE+ 802.3at

3700 - No external module installed

4x4:3 on 2.4/5 GHz

16.8

x





3700 + Wireless Security Module

4x4:3 on 2.4/5 GHz + WSM

19.6

x





PoE 802.3af

3700 - No external module installed

3x3:3 on 2.4/5 GHz

15.4



n/a

n/a

3700 + Wireless Security Module

2x2:2 on 2.4/5 GHz + WSM

15.4



n/a

n/a

Warranty

Limited lifetime hardware warranty

Compliance standards

-  UL 60950-1

-  CAN/CSA-C22.2 No. 60950-1

-  UL 2043

-  IEC 60950-1

-  EN 60950-1

-  EN 50155

-  Radio approvals:

◦    FCC Part 15.247, 15.407

◦    RSS-210 (Canada)

◦    EN 300.328, EN 301.893 (Europe)

◦    ARIB-STD 66 (Japan)

◦    ARIB-STD T71 (Japan)

◦    EMI and susceptibility (Class B)

◦    FCC Part 15.107 and 15.109

◦    ICES-003 (Canada)

◦    VCCI (Japan)

◦    EN 301.489-1 and -17 (Europe)

◦    EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

-  IEEE standards:

◦    IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

◦    IEEE 802.11ac Draft 5

-  Security:

◦    802.11i, Wi-Fi Protected Access 2 (WPA2), WPA

◦    802.1X

◦    Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

-  Extensible Authentication Protocol (EAP) types:

◦    EAP-Transport Layer Security (TLS)

◦    EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

◦    Protected EAP (PEAP) v0 or EAP-MSCHAPv2

◦    EAP-Flexible Authentication via Secure Tunneling (FAST)

◦    PEAP v1 or EAP-Generic Token Card (GTC)

◦    EAP-Subscriber Identity Module (SIM)

-  Multimedia:

◦    Wi-Fi Multimedia (WMM)

-  Other:

◦    FCC Bulletin OET-65C

◦    RSS-102

◦    EN 300.328, EN 301.893 (Europe)

◦    ARIB-STD 66 (Japan)

◦    ARIB-STD T71 (Japan)

◦    EMI and susceptibility (Class B)

◦    FCC Part 15.107 and 15.109

◦    ICES-003 (Canada)

◦    VCCI (Japan)

◦    EN 301.489-1 and -17 (Europe)

◦    EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

-  IEEE standards:

◦    IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

◦    IEEE 802.11ac Draft 5

-  Security:

◦    802.11i, Wi-Fi Protected Access 2 (WPA2), WPA

◦    802.1X

◦    Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

-  Extensible Authentication Protocol (EAP) types:

◦    EAP-Transport Layer Security (TLS)

◦    EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

◦    Protected EAP (PEAP) v0 or EAP-MSCHAPv2

◦    EAP-Flexible Authentication via Secure Tunneling (FAST)

◦    PEAP v1 or EAP-Generic Token Card (GTC)

◦    EAP-Subscriber Identity Module (SIM)

-  Multimedia:

◦    Wi-Fi Multimedia (WMM)

-  Other:

◦    FCC Bulletin OET-65C

RSS-102

802.11n version 2.0 (and related) capabilities

-  4x4 MIMO with three spatial streams

-  Maximal ratio combining (MRC)

-  802.11n and 802.11a/g beamforming

-  20- and 40-MHz channels

-  PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

-  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

-  802.11 dynamic frequency selection (DFS)

Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities

-  4x4 MIMO with three spatial streams

-  MRC

-  802.11ac beamforming

-  20-, 40-, and 80-MHz channels

-  PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)

-  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

-  802.11 DFS

-  CSD support
