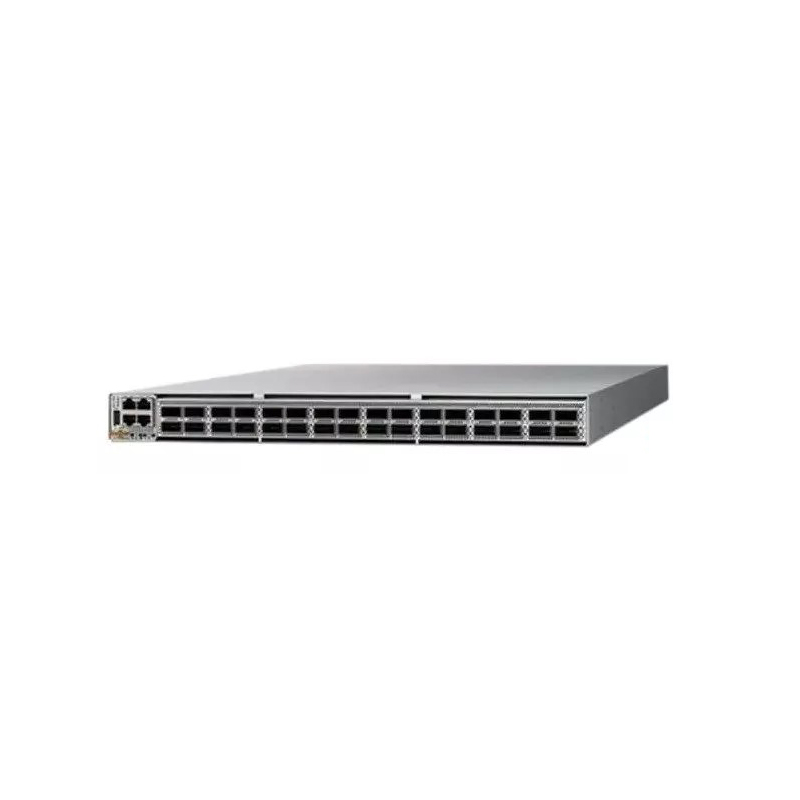

Router Cisco 8100 1U Chassis 32x 100GbE QSFP28

Mã sản phẩm: 8101-32H-O
Tình trạng: Còn
Giá: Liên hệ
Lượt xem: 241
Liên hệ tư vấn 0888.222.070

The Cisco 8100 Series extends the small footprint, low power, and high performance of the 8000 Series to data center fabric roles that do not require the expanded forwarding scale and deep buffering of the 8200 Series.

The 8100 Series designed with Cisco’s Q200 and G100 generation ASICs and without HBM delivers the low power and high performance of 7nm technology at four bandwidth levels – 3.2 Tbps, 6.4 Tbps, 12.8 Tbps and 25.6 Tbps so the latest silicon developments can be fully leveraged across data center networks in roles such as Top of Rack (ToR), high-density IP Fabric leaf and spines.

The Cisco 8100 Series offers four different variants: Cisco 8101-32H with 32 ports of 100GbE in a compact 1RU form factor, Cisco 8102-64H with 64 ports of 100GbE in a 2RU from factor, Cisco 8101-32FH with 32 ports of 400GbE in a compact 1RU form factor and Cisco 8111-32EH with 32 ports of 800G or 64 ports of 400GbE with breakout cable in a compact 1RU form factor.

The 8100 Series supports both IOS XR software and the open-source network operating system SONiC (Software for Open Networking in the Cloud).

Datasheet Cisco 8101-32H-O
Port 32x 100GbE QSFP28 ports
Height 1 RU
Bandwidth 3.2 Tbps
Power supplies 2x power supplies
Fan 5x Fans
Physical characteristics
Physical (H) 1.73 x (W) 17.3 x (D) 19.34 in. (4.40 x 43.9 x 49.1 cm) – 1 RU
Weight 22.7 lbs (10.32 kg)
Typical system power 256W
